Air comfort

Connected device that monitors temperature and humidity.

  • Project date: 2016

  • Client: iBeabot

  • Production: Tektos Limited

  • Material: PVC

  • Design Brief: To develop a connected device that measures temperature and humidity.

 Preliminary explorations.

Preliminary explorations.

Francois Hurtaud Design Air Comfort Temperature sensor design directions


A familiar shape.

In 1884, Joseph Hicks was granted the patent for Clinical Thermometer using mercury to display the temperature level. The mercury reservoir and the vertical shape will become a global visual symbol.

A playful object.

A gömböc or gomboc is a convex three-dimensional homogeneous body which, when resting on a flat surface, has just one stable and one unstable point of equilibrium.

A versatile usage.

A hook lookalike system will allow the user to hang or suspend the sensor in the desired location.


 Golden Ratio.

Golden Ratio.

 The design deliberately features no light, connectors or buttons.

The design deliberately features no light, connectors or buttons.

 Mechanical Structure. The sensors are placed at the heart of the product in order to benefit from a homogenous ventilation whether the product is laid flat or suspended.

Mechanical Structure. The sensors are placed at the heart of the product in order to benefit from a homogenous ventilation whether the product is laid flat or suspended.

 The low power consumption sensors are powered by a flat battery accessible by twisting the bottom part.

The low power consumption sensors are powered by a flat battery accessible by twisting the bottom part.

 Mass production.

Mass production.

Francois Hurtaud Design Air Comfort Temperature sensor


Specifications:

  • Connectivity: Wirelessly sync with iOS and Android

  • Detection range: 10 meters (free field)

  • Battery Type: Button cell CR2450 (changeable)

  • Battery life: Minimum 12 months

  • Temperature sensor range : -25°C to 70°C, accuracy at 25C: ±0.5°C

  • Humidity sensor range: 0% to 100%, accuracy at 70%: ±4.5°C

  • Measurement interval: 5mins to 40mins adjustable

  • Data storage amount: Up to 100 days (4032 sets)

  • Dimension:  Max Diameter 35.8mm, height 115.2mm

  • Net Weight: Approx. 35g


Francois Hurtaud Design Air Comfort Temperature sensor


Air Comfort
45.00
Quantity:
Add To Cart
  Air Comfort for the little one(s).

Air Comfort for the little one(s).

  Air Comfort for the botanist.

Air Comfort for the botanist.

  Air Comfort for the connoisseur.

Air Comfort for the connoisseur.

  Data is pushed via Bluetooth.

Data is pushed via Bluetooth.

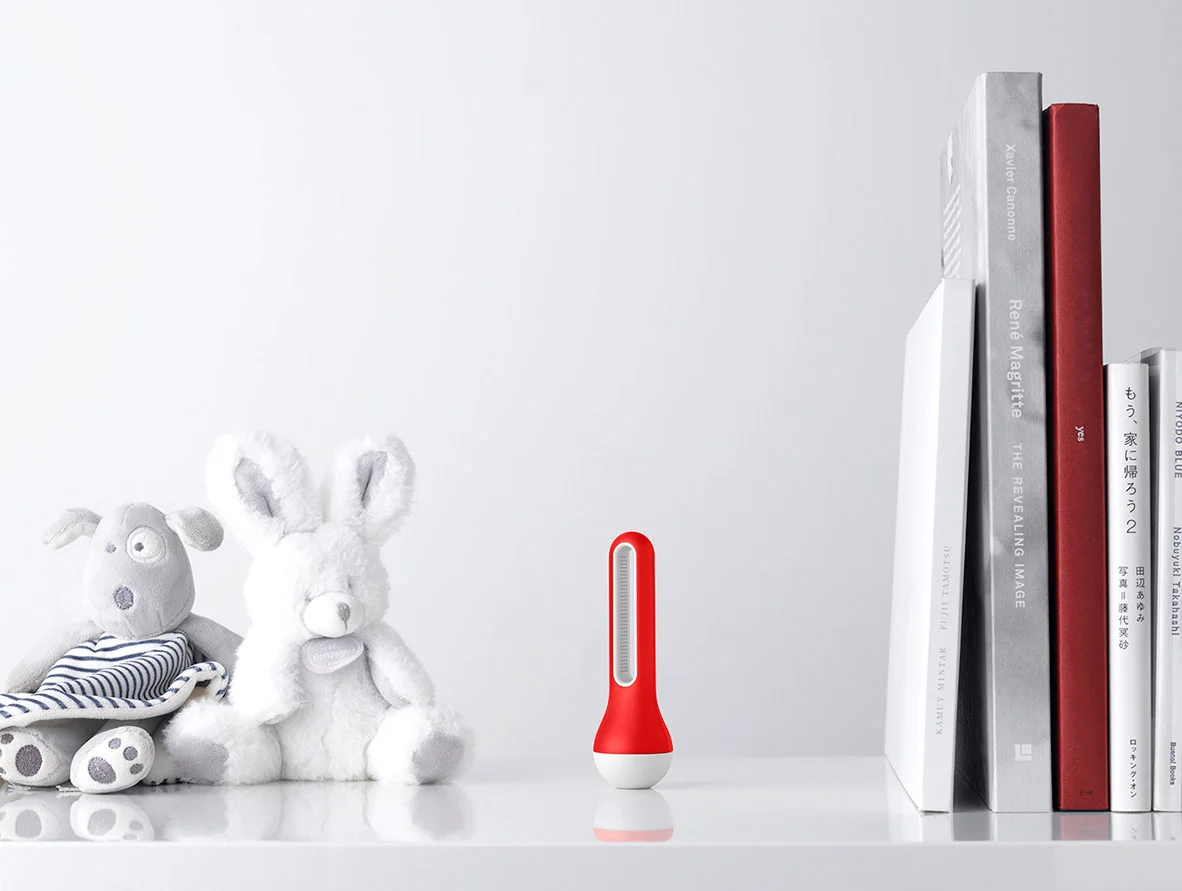

 The compact design allows Air Comfort to blend into the surrounding, free-standing or suspended.

The compact design allows Air Comfort to blend into the surrounding, free-standing or suspended.

Francois Hurtaud Design Air Comfort Temperature sensor
Awards
